Accessories / equipment:
– Conical bending device
– induction hardened rolls
– digital display for side rollers
– Machine made of steel construction

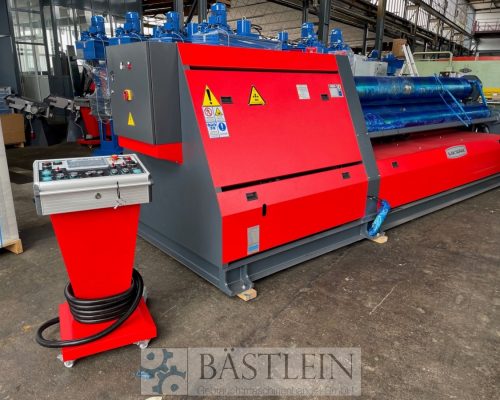

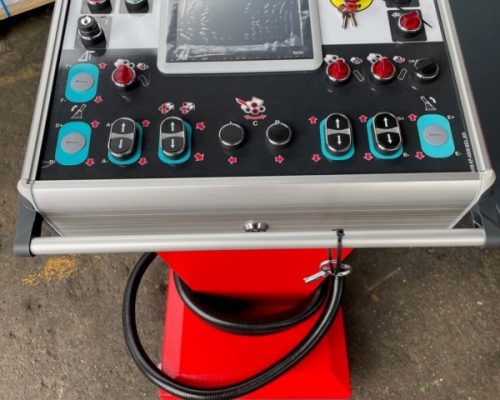

– Separate control panel
– two speeds
– all rollers on ball bearings
– Folding and support bearing from the top roller is actuated from the control panel.
When the folding bearing is opened, the roller moves automatically upwards.
– Conical adjustment of the rollers via control panel
– Central rollers are via hydraulic motor and rotary reduction gear
driven. (Top and bottom rollers)
– Calibration
| sheet width | 3100 | mm |
| plate thickness | 16 | mm |
| pre-bending | 13 | mm |
| upper roll diameter | 330 | mm |
| lower roll diameter | 300 | mm |
| side roll diameter | 240 | mm |
| Control | ||
| total power requirement | 11 | kW |
| Overall size | 5600x1650x1900 | mm |
| weight of the machine ca. | 10.600 | kg |
4040315
Steuerung: NC

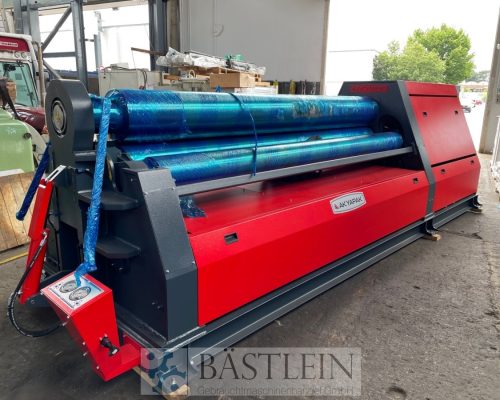

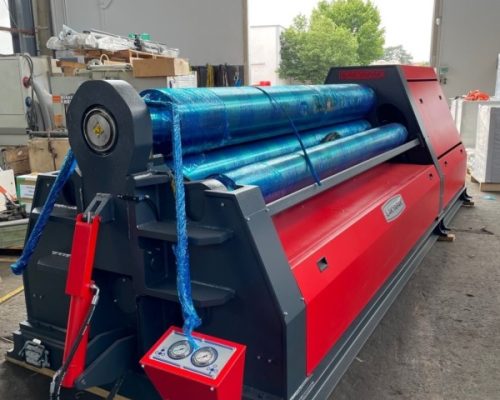

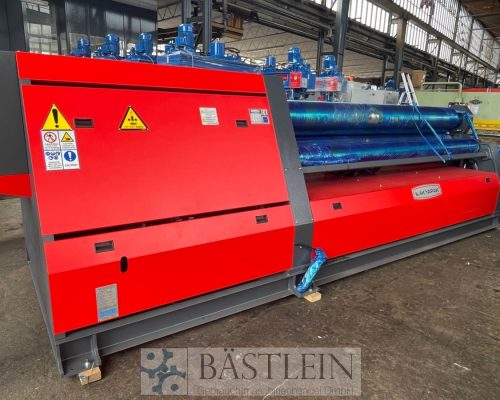

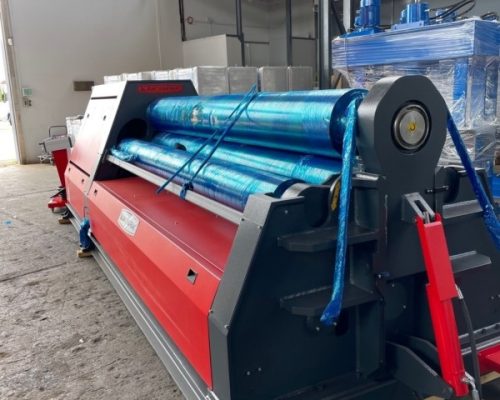

Metal Processing, Sheet metal working / shaeres / bending, Plate Bending Machine – 4 Rolls
