Accessories / equipment:

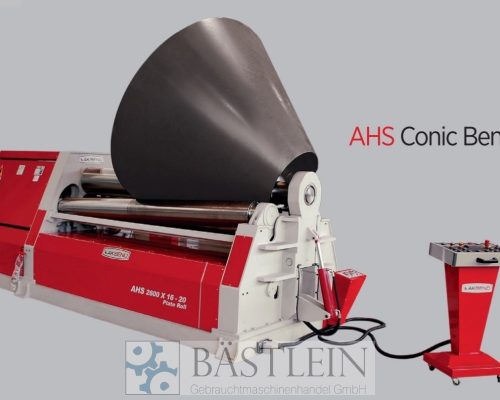

– Conical bending device
– induction hardened rolls
– digital display for side rollers
– Machine made of steel construction
– Separate control panel
– two speeds
– all rollers on ball bearings
– Folding and support bearing from the top roller is actuated from the control panel.
When the folding bearing is opened, the roller moves automatically upwards.
– Conical adjustment of the rollers via control panel
– Central rollers are via hydraulic motor and rotary reduction gear
driven. (Top and bottom rollers)
– Calibration
| sheet width | 4100 | mm |
| plate thickness | 35 | mm |
| pre-bending | 28 | mm |
| upper roll diameter | 540 | mm |
| lower roll diameter | 541 | mm |
| side roll diameter | 440 | mm |
| total power requirement | 37 | kW |
| weight of the machine ca. | 48.100 | kg |
| Machine dimensions approx. | 7670x3000x2930 | mm |
4040292
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Plate Bending Machine – 4 Rolls
