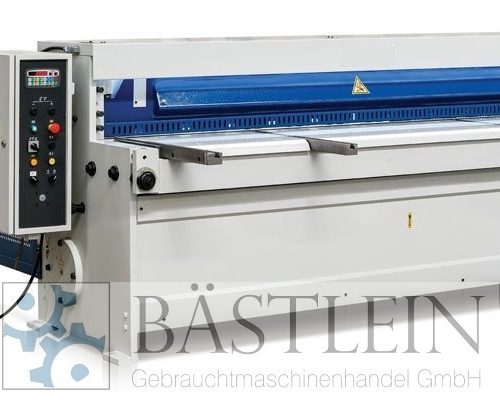

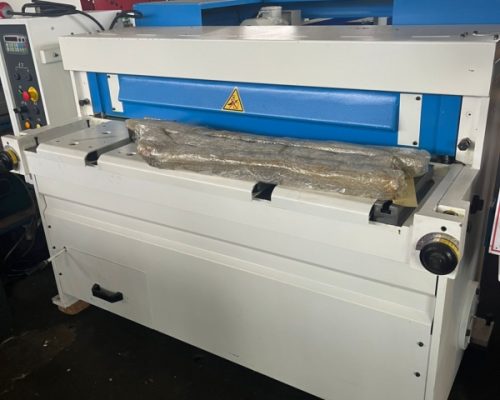

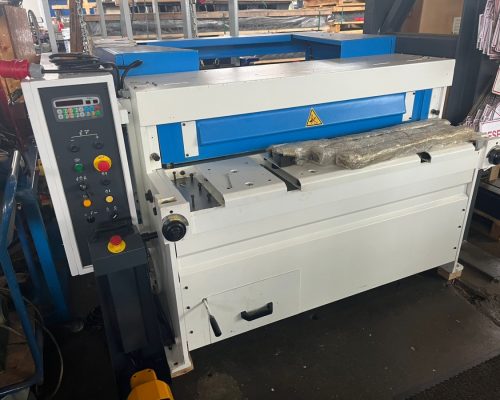

Standard equipment:
– All-steel welded construction with static and dynamic frame rigidity
frame rigidity
– Direct drive with brake motor
– Specially alloyed cutting blades
– 750 mm motorized, digitally adjusted backgauge with ball screws
recirculating ball screws
– Manual blade gap adjustment system
– Mechanical sheet clamping system with plastic base
– Work table with insert plates
– foot switch for single and repeat cutting cycles
– 1 x squaring arm 1000 mm long with metric scale
– 2 x 800 mm front material support arms
– Front stop
– Finger protection – front and rear covers
– Rear light guards
– CE declaration of conformity
| sheet width | 1350 | mm |
| 3 | mm | |
| sheet thickness for stainless steel | 1,5 | mm |
| rear stop | 600 | mm |
| total power requirement | 3 | kW |
| weight of the machine ca. | 1150 | kg |
| dimensions | 2030 x 1940 x 1220 | mm |
4011175

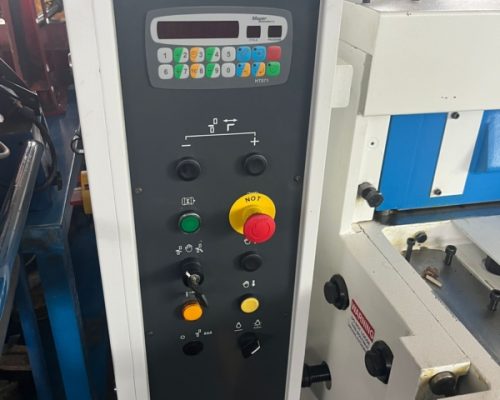

Steuerung: CNC
Metal Processing, Sheet metal working / shaeres / bending, Plate Shear – Hydraulic
