Domestic equipments:
– Hydraulic swing cut sheet metal shears

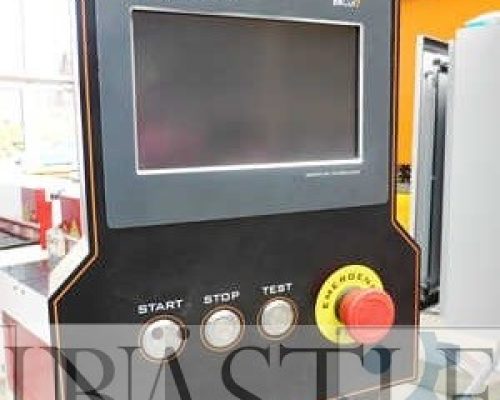

– Touch screen controller with digital display for backgauge
– automatic kerf adjustment via the control
– Backgauge control 1000 mm travel with recirculating ball screws
– Vibration cutting machine with kerf adjustment
– 2 support arms
– 1 side stop
– Photocell behind the machine
– Cutting length limit
– cut line lighting
– Chrome steel knife
– Ball rolls in the table
– hinged finger guard with limit switch
– Footswitch
– CE mark / Declaration of Conformity
– Bed instructions in German
| sheet width | 3100 | mm |
| plate thickness | 10 | mm |
| cutting angle | 2 | ° |
| down holder | 14 | Stück |
| no. of strokes | 13 | Hub/min |
| throat | 350 | mm |
| oil volume | 260 | l |
| total power requirement | 22 | kW |
| weight of the machine ca. | 10.550 | kg |
| dimensions of the machine ca. | 4000x2250x2050 | mm |
4011046
Steuerung: CNC
Metal Processing, Sheet metal working / shaeres / bending, Plate Shear – Hydraulic
