Accessories / equipment:

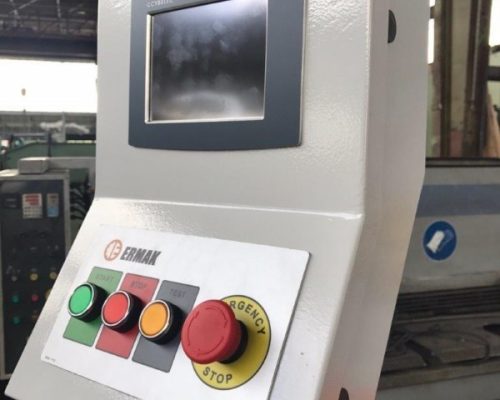

– CYBELEC-CybTouch control panel with digital display for backgauge
– hydr. Cutting gap adjustment via control
– 1 side stop
– 4 front lifting arms
– cut line lighting
– Cutting gap adjustment
– Cutting length limit
– Ball rolls in the table

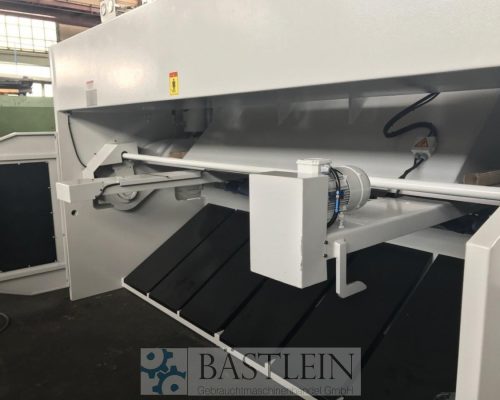

– motorized back gauge 1.000 mm travel with recirculating ball screws,
automatically start at the end of the stop
– Shear knives for stainless steel cuts as standard

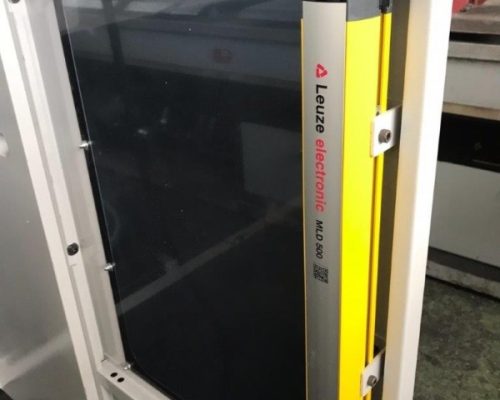

– Photocell behind the machine
– SIEMENS electrical system
– BOSCH / HOERBIGER hydraulic system
– Footswitch
– Operating instructions in German
| sheet width | 3100 | mm |
| plate thickness | 13 | mm |
| thickness at "Niro-steel" | 8 | mm |
| control | CYBELEC CybTouch | |

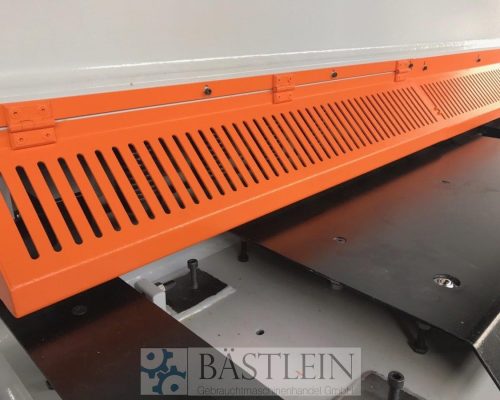

| down holder | 14 | Stück |
| cutting angle | 2,0° | ° |
| total power requirement | 22 | kW |
| no. of strokes | 11 | Hub/min |
| voltage | 380 | V |
| weight of the machine ca. | 12.100 | kg |
| dimensions of the machine ca. | 4000x2240x2235 | mm |
4010788
Steuerung: NC CYBELEC CybTouch

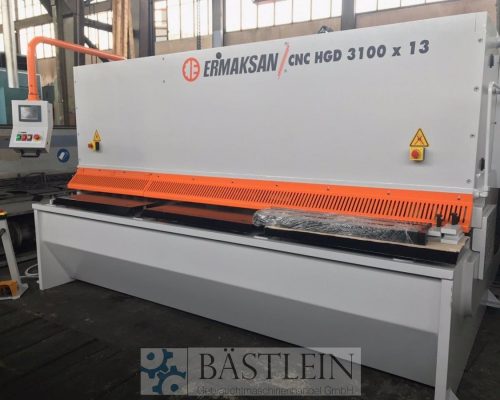

Metal Processing, Sheet metal working / shaeres / bending, Plate Shear – Hydraulic
