Accessories / equipment:

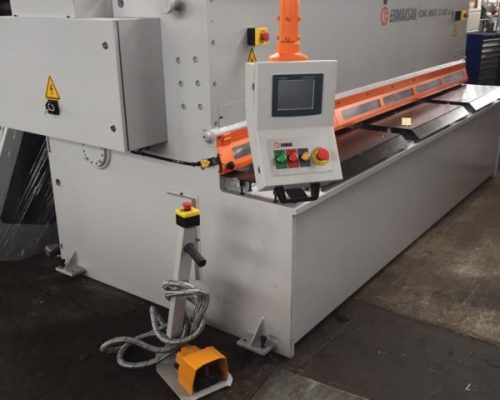

– CYBELEC Cybtouch touch screen controller
– NC controller for backgauge, gap adjustment, number of pieces,
cutting length
– 1 side stop with scale, T-groove and tilting cam
– 2 front support arms
– cut line lighting
– Cutting gap adjustment
– Cutting length limit
– Folding finger guard with limit switch
– motorized back gauge 1.000 mm travel
– Ball screws

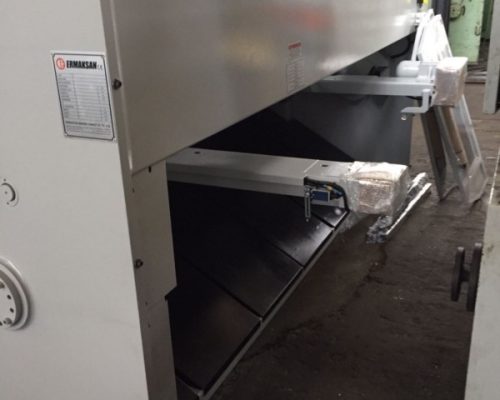

– Photocell behind the machine
– Ball rolls in the table
– SIEMENS electrical system
– BOSCH / HOERBIGER hydraulic system
– Footswitch
– CE mark / Declaration of Conformity
– Operating manual: Machine and control in German
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| voltage | 380 | V |
| control | CYBELEC CybTouch | |
| down holder | 14 | Stück |
| cutting angle | 1,2 | ° |
| 20 | ||
| total power requirement | 11 | kW |
| weight of the machine ca. | 5700 | kg |
| dimensions of the machine ca. | 4000x2100x1640 | mm |
4010594
Steuerung: NC CYBELEC CybTouch
