Equipment:

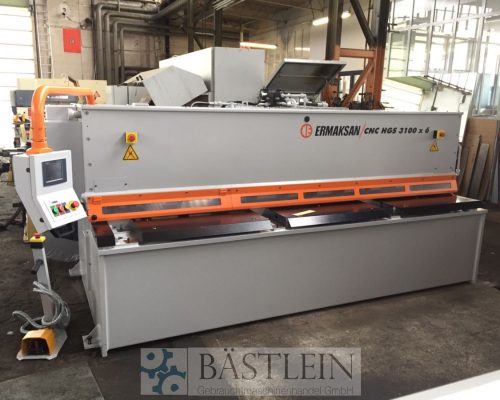

– CNC electr. / hydraulic swing cut shears

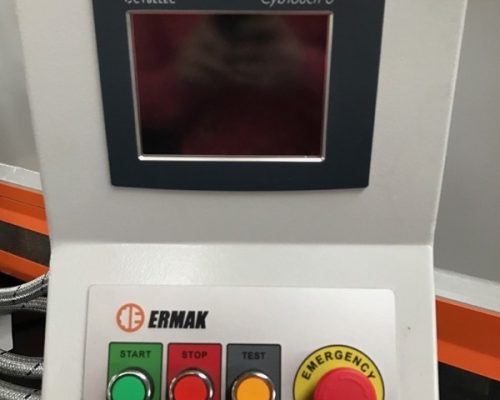

– CYBELEC CNC touch screen controller, model CybTouch 8
* Backgauge preselection – X axis
* Cutting gap adjustment
* Quantity
* Cutting length limitation
* Material preselection, including sheet thickness
* Cutting line lighting
– motorized backgauge, travel = 1,000 mm (X axis)
* on ball screws
* autom. can be folded up at max. Traverse path, for longer cuts
– 1x side stop
– 2x front support arms

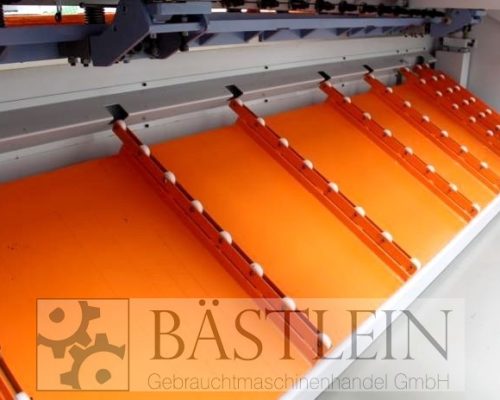

– Ball casters in the front support table
– hinged finger protection, with safety switch
– BOSCH / HOERBIGER hydraulic system
– SIEMENS electrical system
– light barrier behind the machine (safety device)

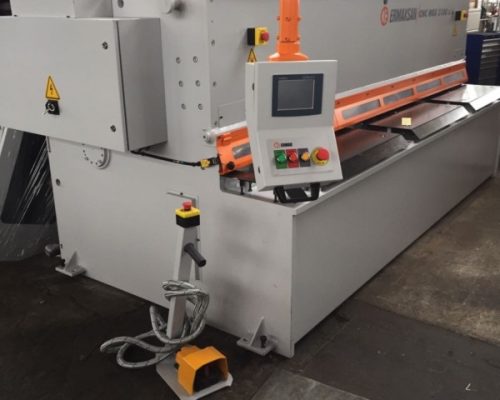

– foot switch
– CE mark / declaration of conformity
– User manual: machine u. Control in German
Special equipment:

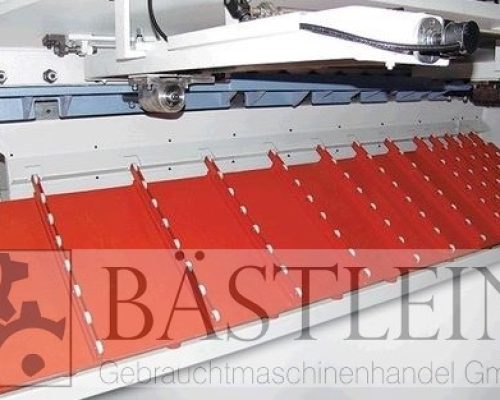

– pneumatic sheet holding device (monoblock)
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| voltage | 380 | V |
| control | CYBELEC CybTouch | |
| down holder | 14 | Stück |
| cutting angle | 1,2 | ° |
| total power requirement | 11 | kW |
| weight of the machine ca. | 6.300 | kg |
| dimensions of the machine ca. | 4000x2100x1640 | mm |
4010991
Steuerung: NC CYBELEC CybTouch
