Features:
– Robust / motorized swing-cut guillotine shears
– Machine with manual material/backgauge
* Travel range 5.0 750 mm stop depth
* Analog position display
* Manual adjustment from the front
– Break-proof, torsion-free steel welded construction
– Compact and clear machine design
– 1x hold-down beam
* Hold-down opens before the knife beam moves up
* No kinking of very sensitive sheets
– Manual cutting gap adjustment
– Integrated sheet metal holding system for thin sheet metal cuts
– Sheet metal/cut material removal at the front (operator side)

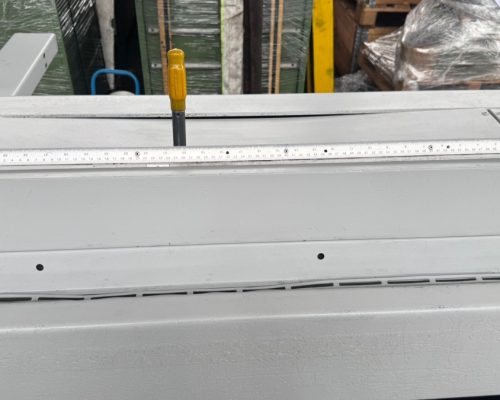

– 1x side stop with mm scale
– 3x table extensions
– 1x freely movable foot switch
| sheet width | 3100 | mm |
| plate thickness | 2.00 | mm |
| thickness at "Niro-steel" | 1.25 | mm |
| no. of strokes | max. 36 | Hub/min |
| cutting angle | 0.9 | Grad |
| table height | 800 | mm |
| table width | 430 | mm |
| distance between columns | 3200 | mm |
| back stop - adjustable | 5.0 - 750 | mm |
| engine output | 3.0 | kW |
| weight of the machine ca. | 1950 | kg |
| range L-W-H | 3730 x 2070 x 1400 | mm |
4011287
Steuerung: konventionell
Metal Processing, Sheet metal working / shaeres / bending, Plate Shear – Mechanical
