Domestic equipments:
– Central rollers via electric motor, planetary reduction gear and
Gear drive driven

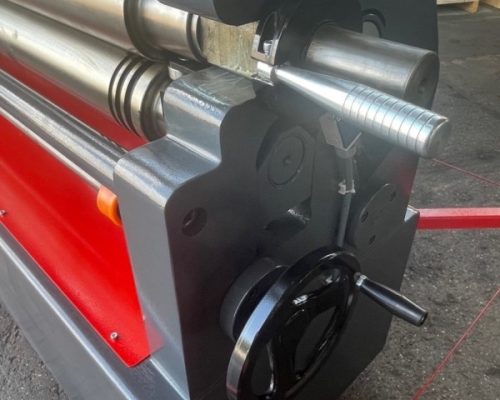

– Swivel top roller
– Main engine with brake device
– Conical bending device

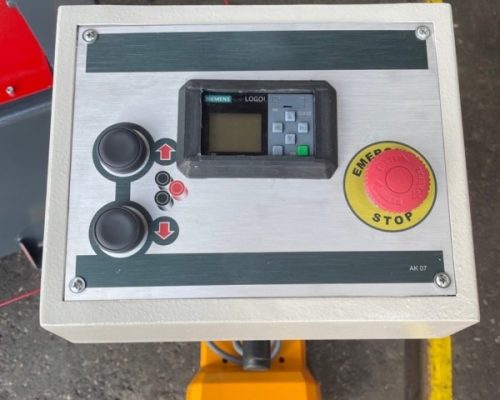

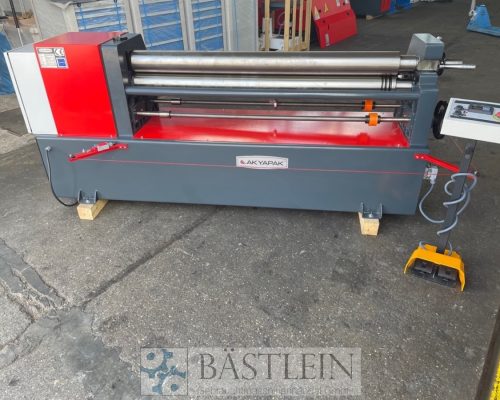

– Mobile controller and foot pedal
– CE mark / Declaration of Conformity
Additional equipment:
– induction hardened rolls
– motorized rear roller adjustment
– Digital display for back roller
| sheet width | 1550 | mm |
| plate thickness | 4,5 | mm |
| pre-bending | 4,0 | mm |
| roll length | 1550 | mm |
| min. dia. | 190 | mm |
| roll diam. toproll | 130 | mm |
| weight | 1265 | kg |
| dimensions | 2670x1110x1050 | mm |
4040091
Steuerung: Sonstige
Metal Processing, Sheet metal working / shaeres / bending, Rolls bending machine – 3 Rolls
