Standard features:
– Central rollers via electric motor, planetary reduction gear and
Gear drive driven
– Swivel top roller
– Main engine with brake device
– Conical bending device

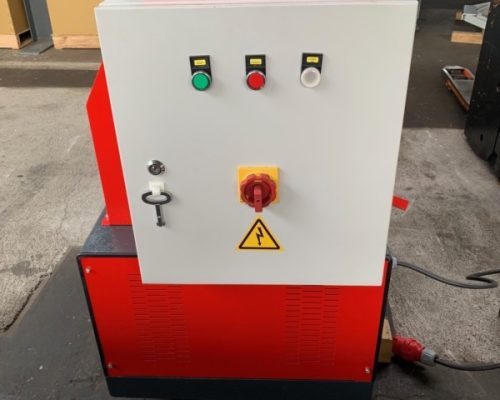

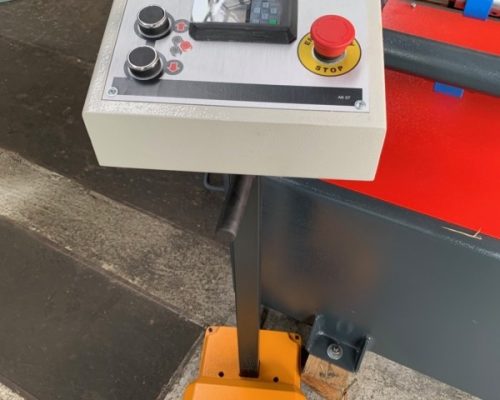

– Mobile controller and foot pedal
– CE mark / Declaration of Conformity
Additional equipment:
– motorized rear roller adjustment
– Digital display for back roller
– induction hardened rolls
| sheet width | 1250 | mm |
| plate thickness | 5,5 | mm |
| pre-bending | 5,0 | mm |
| roll length | 1280 | mm |
| min. dia. | 210 | mm |
| roll diam. toproll | 140 | mm |
| weight | 1365 | kg |
| range L-W-H | 2.020 x 900 x 1.200 | mm |
4040081
Steuerung: Sonstige

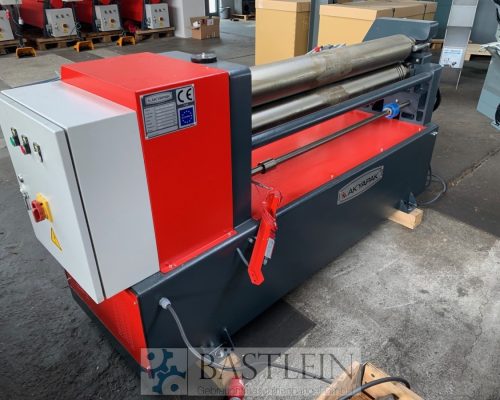

Metal Processing, Sheet metal working / shaeres / bending, Rolls bending machine – 3 Rolls
