Standard features:
– Central rollers via electric motor, planetary reduction gear and
Gear drive driven

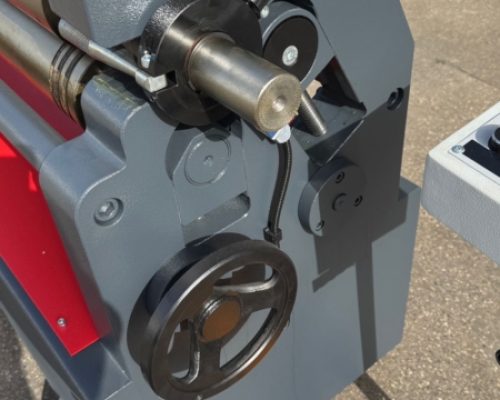

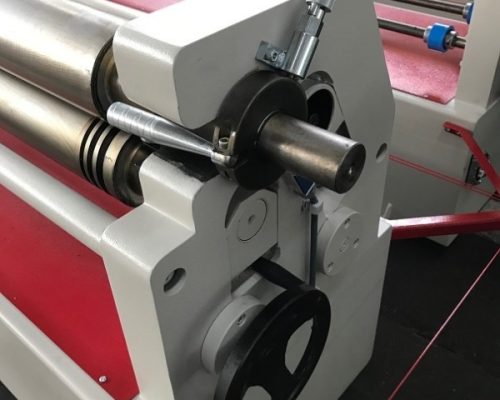

– Swivel top roller
– Main engine with brake device
– Conical bending device

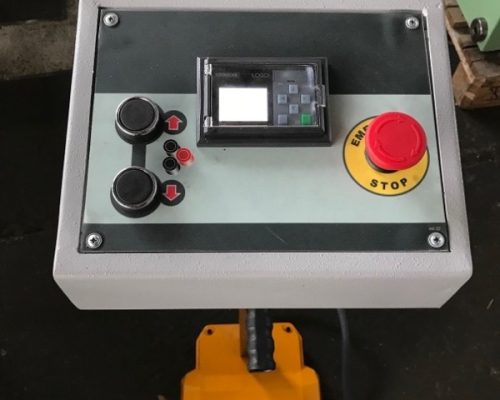

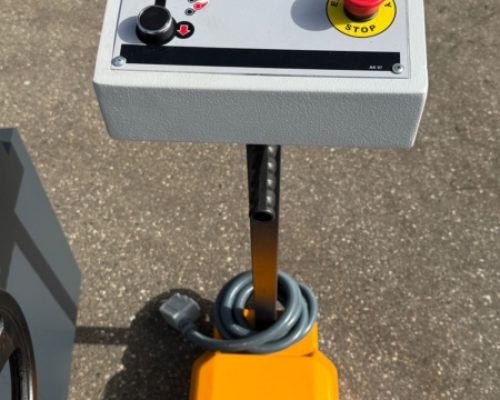

– Mobile controller and foot pedal
– CE mark / Declaration of Conformity
Additional equipment:
– motorized rear roller adjustment

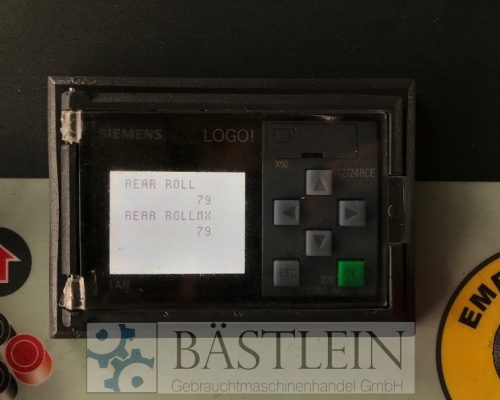

– Digital display for back roller
– induction hardened rolls
| sheet width | 2050 | mm |
| plate thickness | 4,5 | mm |
| pre-bending | 4,0 | mm |
| min. dia. | 210 | mm |

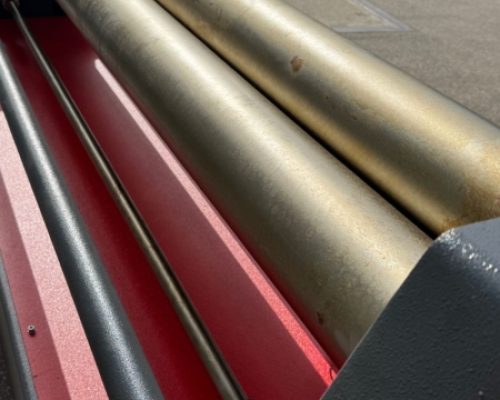

| roll diameter | 140 | mm |
| weight of the machine ca. | 1530 | kg |
| dimensions of the machine ca. | 3220x1200x900 | mm |
4040078
Steuerung: Sonstige

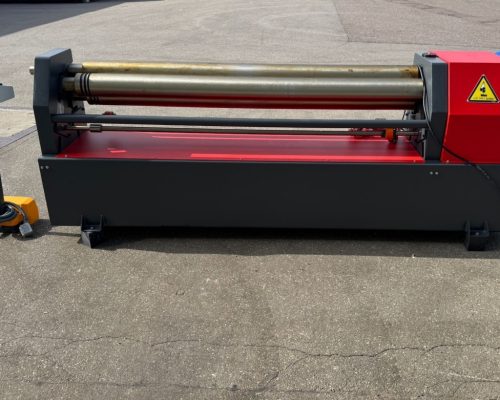

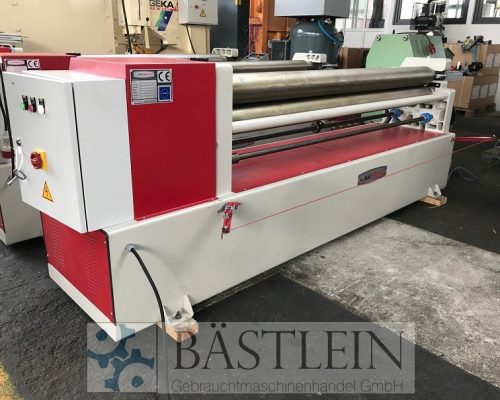

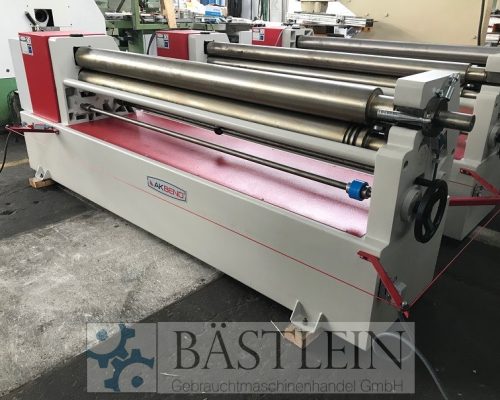

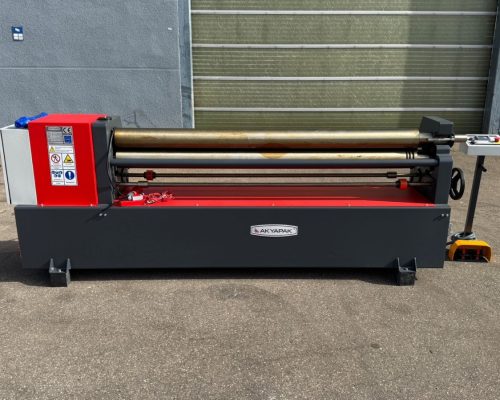

Metal Processing, Sheet metal working / shaeres / bending, Rolls bending machine – 3 Rolls
