Stock no. |
4040284 |
|
Make |
AK-BEND |
|
Type |

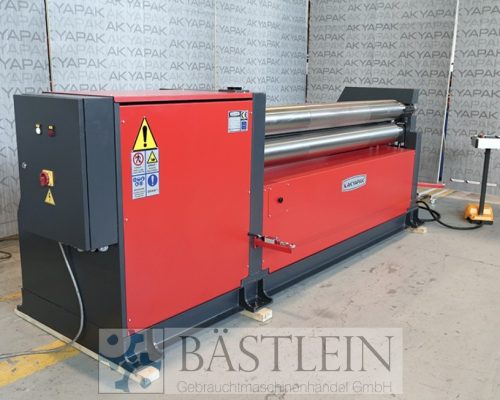

ASM-S 200-30/5 |
|
Year |
Neu |
|
Control |
Sonstige – |
|
Storage location |
Factory |
|
Country of origin |
Turkey |
|
Delivery time |
nach Absprache. |
|
Freight basis |
Lieferung ab Werk. |
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| pre-bending | 5 | mm |
| upper roll diameter | 200 | mm |
| min. bending diameter | Ø 300 | mm |
| bending speed | 5 | m/min |
| total power requirement | 5,5 | kW |
| weight of the machine ca. | 4.000 | kg |
| dimensions of the machine ca. | 4800x1300x1270 | mm |
| sheet width | 3100 | mm |
| plate thickness | 6 | mm |
| pre-bending | 5 | mm |
| upper roll diameter | 200 | mm |
| min. bending diameter | Ø 300 | mm |
| bending speed | 5 | m/min |
| total power requirement | 5,5 | kW |
| weight of the machine ca. | 4.000 | kg |
| dimensions of the machine ca. | 4800x1300x1270 | mm |
Link to the machine: https://baestlein.com/en/maschine/rolls-bending-machine-3-rolls-ak-bend-asm-s-200-30-5/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
