Features:

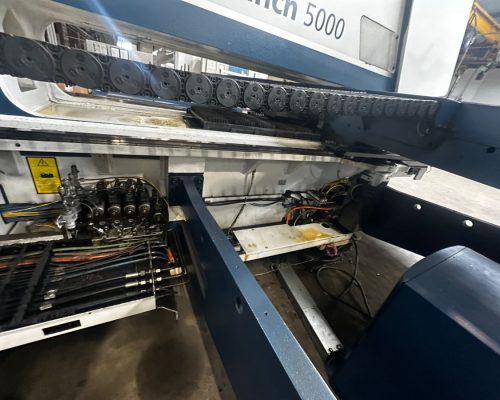

Punching head:
– Hydraulic single-tool holder with 360° rotation
– Manually adjustable holding force
– Programmable holding mechanism (active/passive/re-tightening)
– Spray lubrication for punch
– Punch stroke counter
– Level monitoring for thread forming and tool lubrication

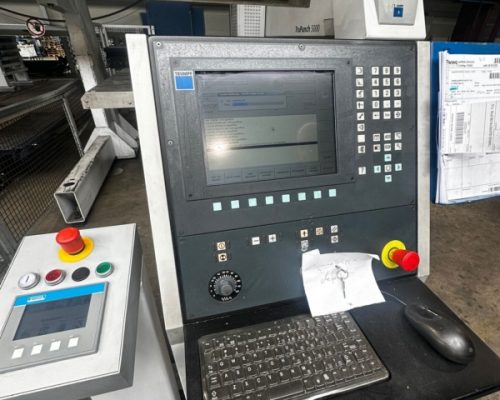

Control System:
– Open control system based on Sinumerik 840 D
– 12″ TFT color display
– Teleservice via the Internet
– Automatic shutdown
Data Transfer:
– USB interface
– RJ-45 network connection
Safety:
– CE marking
– Dual-beam photoelectric sensors
– Hydraulic emergency shutdown
– Warpage detection
Programming:
– TruTrops Punch via network access
1 x MultiTool function
1 x MultiShear function
1 x Thread forming function
1 x Deburring and rolling technology
1 x SoftPunch function
4 x individually openable clamping jaws
4 x height-adjustable clamping jaws
1 x repositioning cylinder

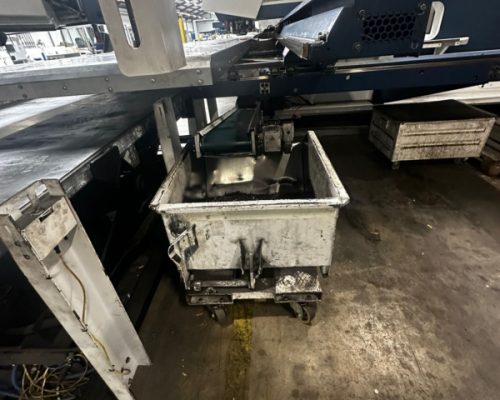

1 x sensor for scrap chute (included in scrap-free processing)
– GripMaster
– scrap grippers with sensors
– Shear lift table 400 mm
– Tiltable scrap pallet 3000 x 1500 mm

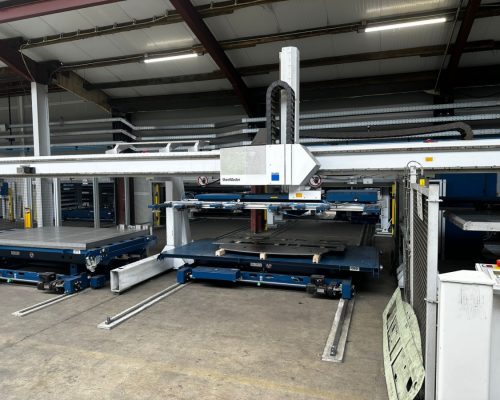

– SheetMaster
– Operating hours 65,000 h
| Punching force | 220 | kN |
| plate thickness | 8 | mm |
| sheet width | 3000 | mm |
| plate length | 1500 | mm |
| workpiece weight | 200 | kg |
| total power requirement | 9,5 | kW |
| dimensions of the machine ca. | 7395 x 6540 x 2072 | mm |
4052128
Steuerung: CNC
Metal Processing, Sheet metal working / shaeres / bending, Stamping and Punching Machine
