Domestic equipments:
– Stable welded construction
– Pressure cylinder laterally adjustable

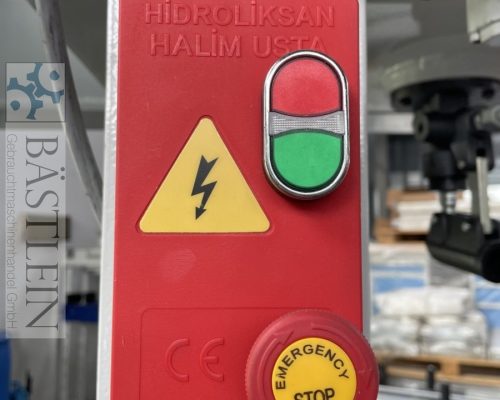

– Electric control via lever / manual over hand lever

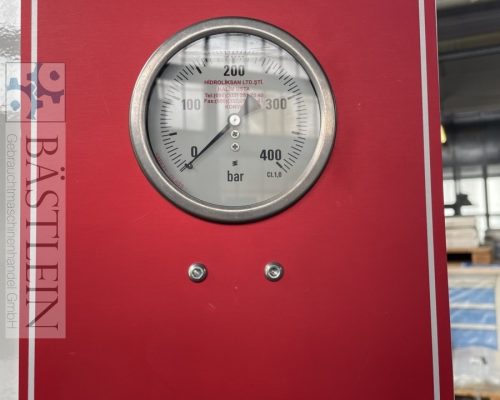

– Pressure gauge via pressure gauge

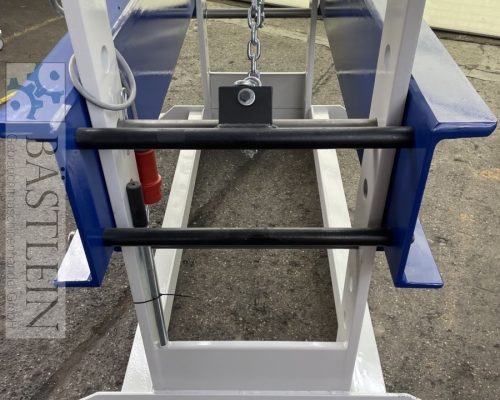

– Material supports per cylinder in the height adjustable
– CE mark
| pressure | 180 | t |
| stroke | 400 | mm |
| column daylight | 1500 | mm |
| Frame Width | 550 | mm |
| distance spindle /table | max. 1000 | mm |
| total power requirement | 7,5 | kW |
| Front light range | 1550 | mm |
| Lateral light range | 550 | mm |
| weight of the machine ca. | 2100 | kg |
| dimensions of the machine ca. | 2300x1200x2850 | mm |
7030081
Steuerung: konventionell
Metal Processing, Presses, Tryout Press – hydraulic
