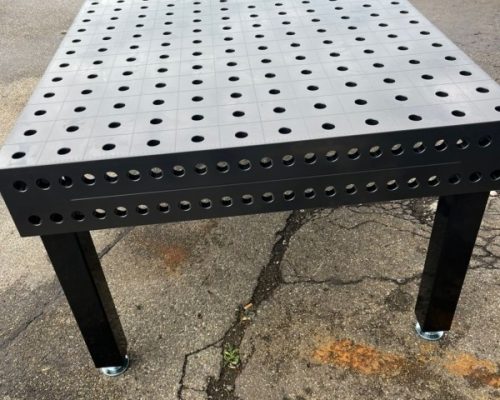

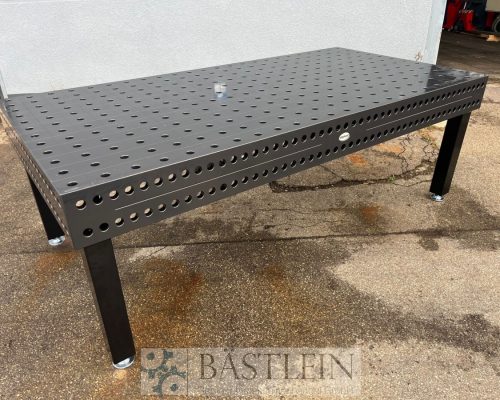

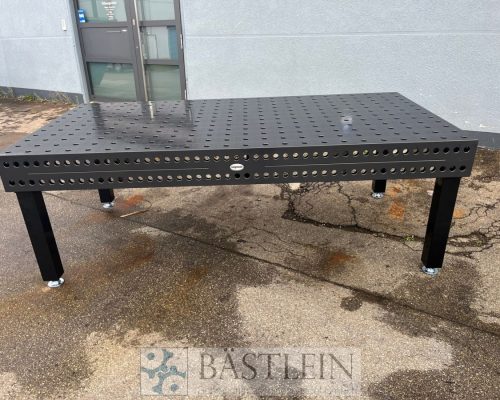

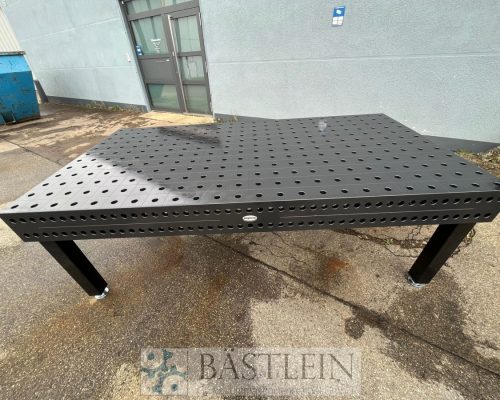

Equipment:
– 4 feet – basic equipment 650 mm
– high-quality steel S355J2+N + plasma nitriding
– Material thickness approx. 24.5 – 27 mm
– Hole Ø 28 mm
– Drill holes surface 100×100 mm grid
– Corners, edges and drill holes rounded
– Side panel height 200 mm
– Hole spacing side panel 50 mm
– Including scaling on the surface
– Construction reinforced by ribs
– Grid lines enable precise superstructures
| table length | 2400 | mm |
| table width | 1200 | mm |
| table height | 200 | mm |
| bore | 28 | mm |
| weight | 918 | kg |
4051646
Steuerung: konventionell
Metal Processing, Welding machines, Welding Table
