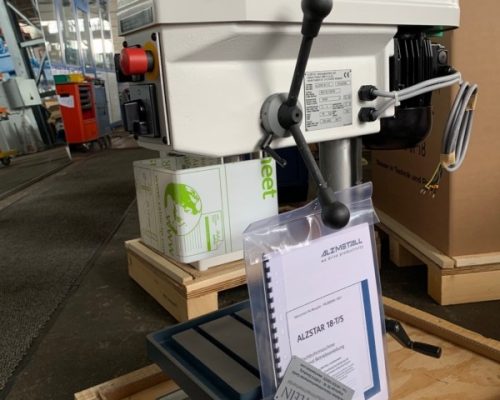

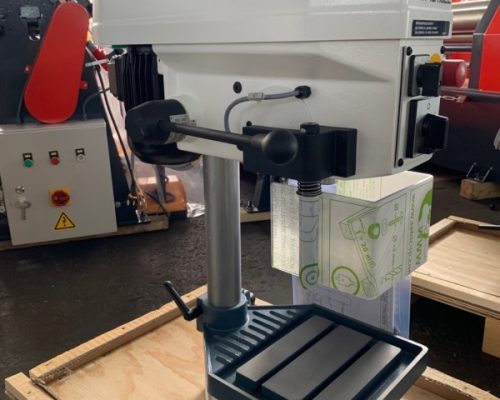

Bench Drilling Machine, ALZMETALL Alzstar 18-T/S

// Zustand: new
// Metal Processing
// Bench Drilling Machine

General data


Stock no.	2010258
Make	ALZMETALL
Type	Alzstar 18-T/S
Year	Neu
Control	Sonstige –
Storage location	Günzburg
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Lager Günzburg

Technical Details

	18	mm
	M 12
	M 14
	MK 2
	225-4.300	U/min.
spindle stroke	80	mm
throat	190	mm
column diameter	65	mm
	300x240	mm
	2 x 12 x 80	mm
	75/357	mm
	300x240	mm
	2 x 12 x 80	mm
	437/437	mm
feed	von Hand
	Handkurbel
total power requirement	0,37/0,55	kW
Machine height	840	mm
weight	120	kg

Description

Standard equipment:
– Main switch with motor protection switch lockable
– Reversing switch for clockwise and anti-clockwise rotation
– Speed adjustment stepless
– Protection IP 54
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Spindle protection with electrical protection

	18	mm
	M 12
	M 14
	MK 2
	225-4.300	U/min.
spindle stroke	80	mm
throat	190	mm
column diameter	65	mm
	300x240	mm
	2 x 12 x 80	mm
	75/357	mm
	300x240	mm
	2 x 12 x 80	mm
	437/437	mm
feed	von Hand
	Handkurbel
total power requirement	0,37/0,55	kW
Machine height	840	mm
weight	120	kg

2010258
Steuerung: Sonstige
Metal Processing, Boring mills / Machining Centers / Drilling machines, Bench Drilling Machine

Link to the machine: https://baestlein.com/en/maschine/bench-drilling-machine-alzmetall-alzstar-18-t-s/
