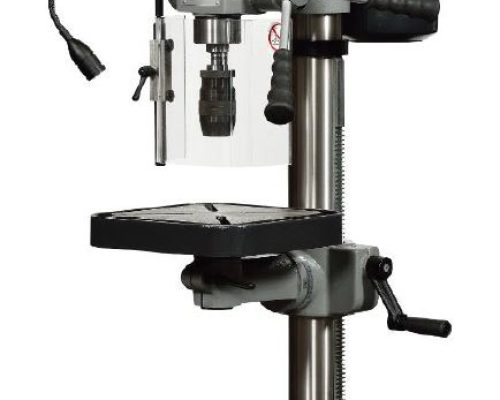

Bench Drilling Machine, ZIMMER BMT 20

// Zustand: new
// Metal Processing
// Bench Drilling Machine

General data


Stock no.	2010519
Make	ZIMMER
Type	BMT 20
Year	Neu
Control	Sonstige –
Storage location	Factory
Country of origin	Germany
Delivery time	kurzfristig – nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

	20
bore stroke	80	mm
Short spindle	MK2
throat	180	mm
Machine table - usable table surface	285x285	mm
table load	45	kg
spindle turning speed range	210-2.500	UpM
total power requirement	0,38	kW
Overall size	620x470x1050	mm
weight of the machine ca.	80	kg

Description

Standard equipment:
– Number of speed ranges 10 steps
– Movable LED machine light
– Swivel work table +/- 45 degrees
– Mains cable and plug ready for immediate use
– Drilling table adjustable via gear rack
– Depth stop with scale
– Emergency stop
– In accordance with current CE conformity

	20
bore stroke	80	mm
Short spindle	MK2
throat	180	mm
Machine table - usable table surface	285x285	mm
table load	45	kg
spindle turning speed range	210-2.500	UpM
total power requirement	0,38	kW
Overall size	620x470x1050	mm
weight of the machine ca.	80	kg

2010519
Steuerung: Sonstige
Metal Processing, Boring mills / Machining Centers / Drilling machines, Bench Drilling Machine
