Features/Accessories:
– Integrated CNC control
– The machine and control system form a single, self-contained transport unit
– Linear guides on the X and Z axes
– Continuously variable AC main spindle drive
– Constant cutting speed programming
– Cold light lamp integrated into the machine
– Power meter for the main spindle drive (ammeter)

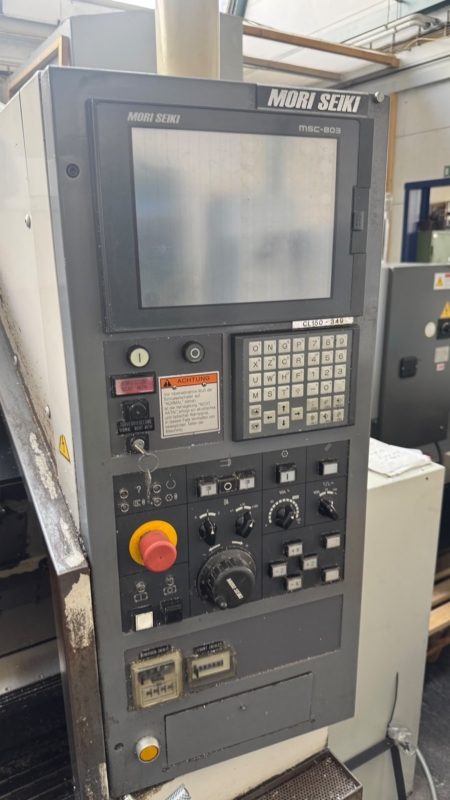

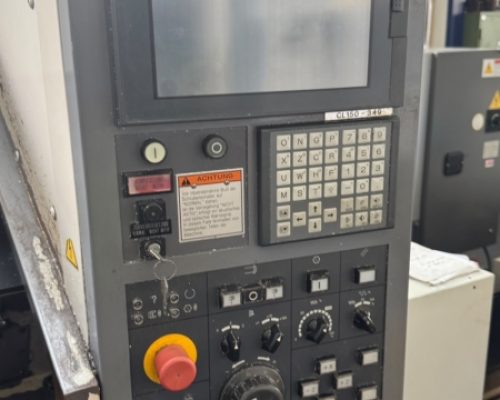

– Control panels for automatic and manual operation, as well as the CNC programming section,
are conveniently accessible and clearly arranged
The central control panel is located on the right side of the machine
– Highly dynamic three-phase servomotors for the X and Z axes
– Backlash-free, preloaded precision lead screws for the X and Z axes
– Automatic central lubrication with electrical monitoring for the bed
and cross slide, as well as ball screws
– Coolant system complete with tank, pump, lines, and nozzle

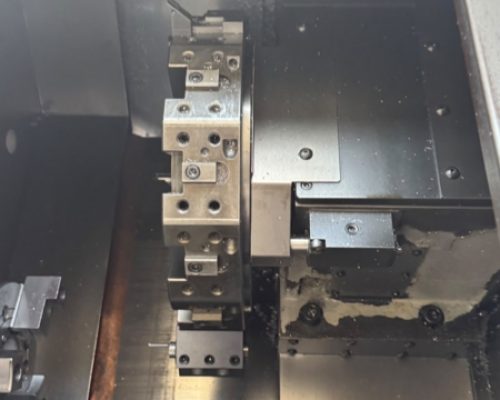

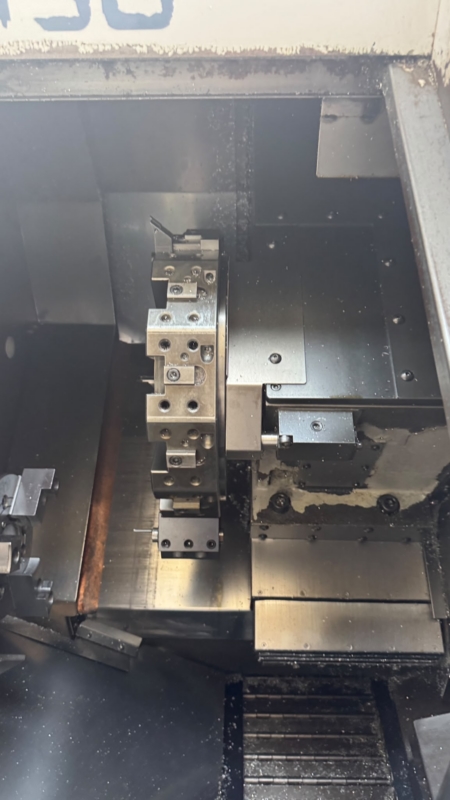

– 12-position electric disc turret System MORI SEIKI with automatic
direction control. Direct coolant supply through the turret disc

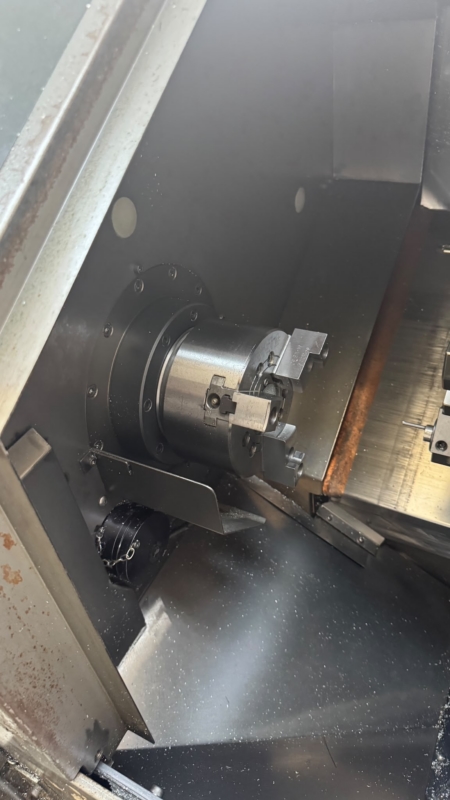

– Hydraulic power unit, permanently mounted in the machine, with functions for
the power chuck
– Fully enclosed work area
– Front sliding door with large viewing window
– Pre-wired for an electric connection to the chip conveyor
– V.24/RS-232-C data interface
– Control cabinet
– Freestanding transformer 400 V/200 V
| turning diameter | 248 | mm |
| turning length | 330 | mm |
| travel -z axis | 190 | mm |
| travel -x axis | 370 | mm |
| spindle bore | 45 | mm |
| quill stroke | 120 | mm |
| Spindle Speed | 6.000 | U/min. |
3020281
Steuerung: CNC
Metal Processing, Lathes, CNC Lathe
