Stock no. |
4021300 |
|
Make |
GPRESS |
|
Type |

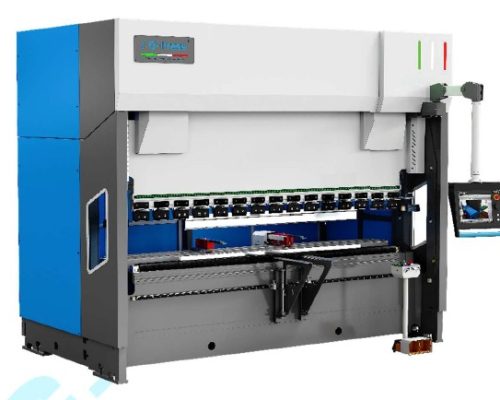

GHX 220-3000 |
|
Year |
NEU |
|
Control |
CNC – Cybelec CybTouch 15 |
|
Storage location |
Factory |
|
Country of origin |
China |
|
Delivery time |
nach Absprache. |
|
Freight basis |
Lieferung ab Werk. |
| pressure | 220 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | 3600 | mm |
| Control | Cybelec CybTouch 15 | |
| stroke | 250 | mm |
| dayligth | 470 | mm |
| 185 | mm/s | |
| bending speed | 0-12 | mm/s |
| 160 | mm/s | |
| machine weight ab. | 14.000 | kg |
| dimensions | 4000 x 2100 x 3100 | mm |
| total power requirement | 22 | kW |
| pressure | 220 | t |
| chamfer lenght | 3100 | mm |
| distance between columns | 3600 | mm |
| Control | Cybelec CybTouch 15 | |
| stroke | 250 | mm |
| dayligth | 470 | mm |
| 185 | mm/s | |
| bending speed | 0-12 | mm/s |
| 160 | mm/s | |
| machine weight ab. | 14.000 | kg |
| dimensions | 4000 x 2100 x 3100 | mm |
| total power requirement | 22 | kW |
Link to the machine: https://baestlein.com/en/maschine/hydr-pressbrake-gpress-ghx-220-3000/
For you as a service: Up to 60 months without down payment, without residual value, personal advice and individual leasing rate calculations are available upon request.
