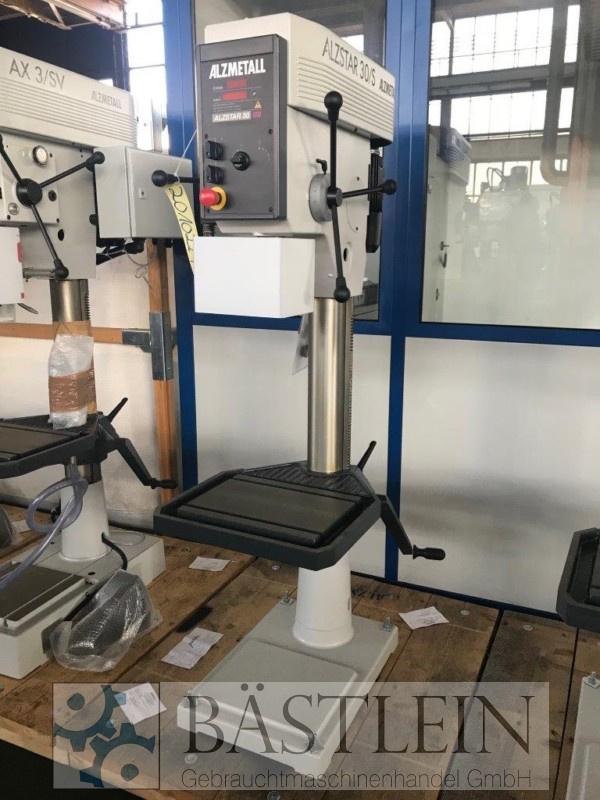

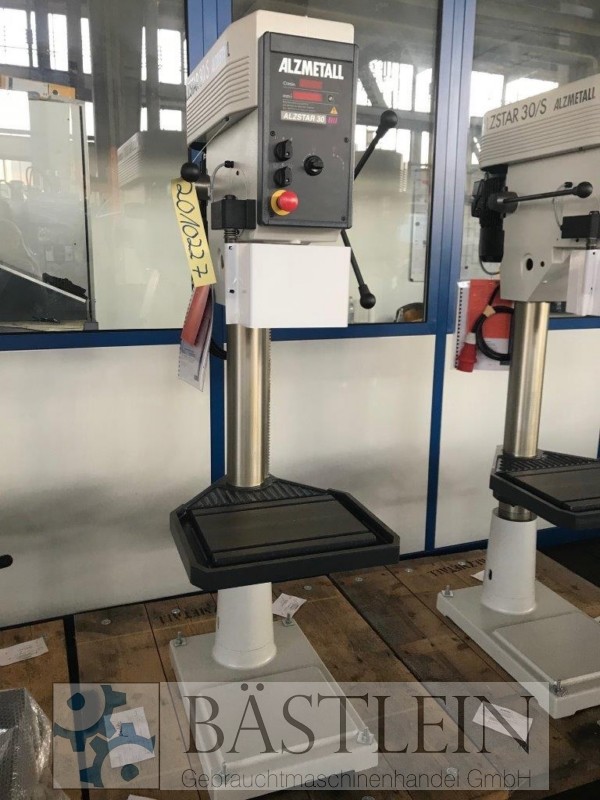

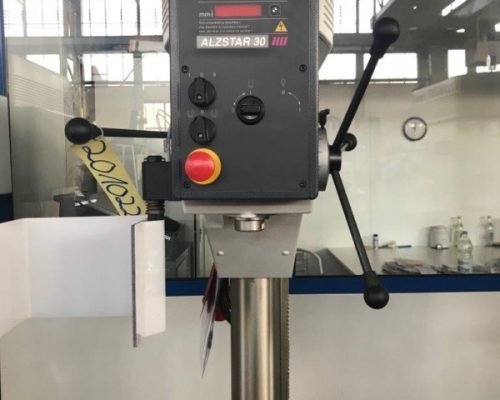

Pillar Drilling Machine, ALZMETALL Alzstar 30/S

// Zustand: new
// Metal Processing
// Pillar Drilling Machine

General data


Stock no.	2010227
Make	ALZMETALL
Type	Alzstar 30/S
Year	Neu
Control	Sonstige –
Storage location
Country of origin	Germany
Delivery time	nach Absprache.
Freight basis	Lieferung ab Werk.

Technical Details

Drilling capacity in St 60	30	mm
threading in St 60	M 16
threading in GG 20	M 20
Short spindle	MK 3
bore stroke	140	mm
throat	293	mm
column diameter	115	mm

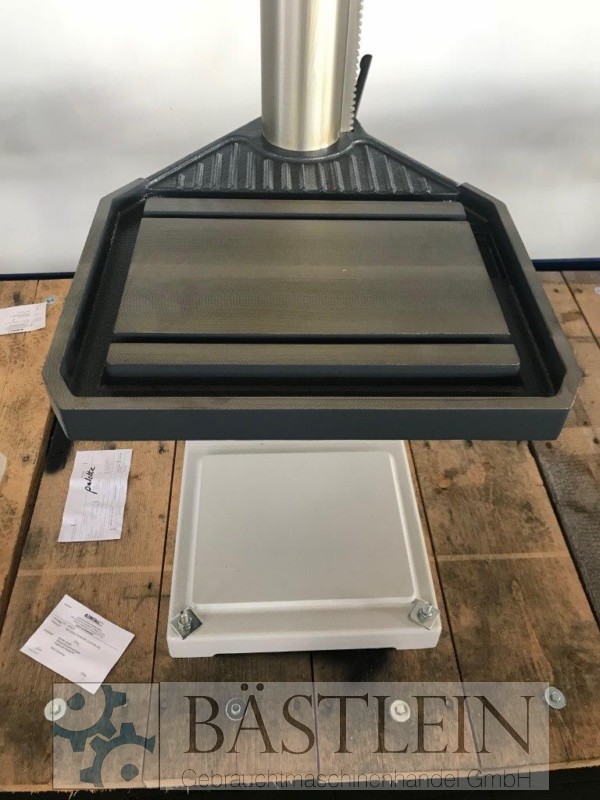

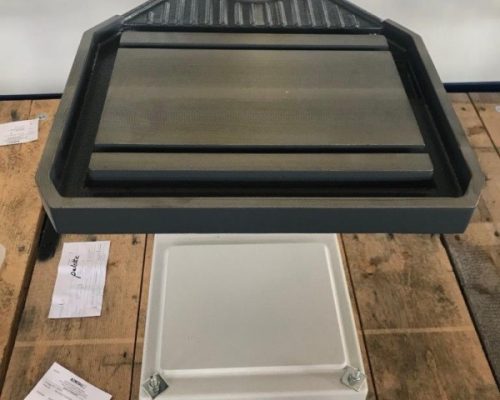

Machine table - usable table surface	514x360	mm
T-Slots Amount - Width - Distance	2 x 14 x 224	mm
Distance spindle - machine table min./max.	132/724	mm
feed	Hand
spindle turning speed range	225-4300	UpM
height of the machine	1790	mm
total power requirement	1,0/1,6	kW

Description

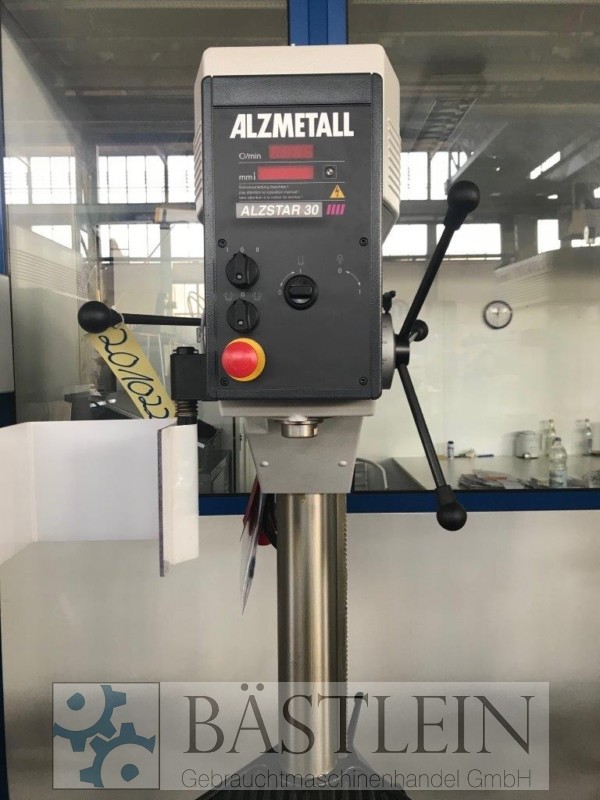

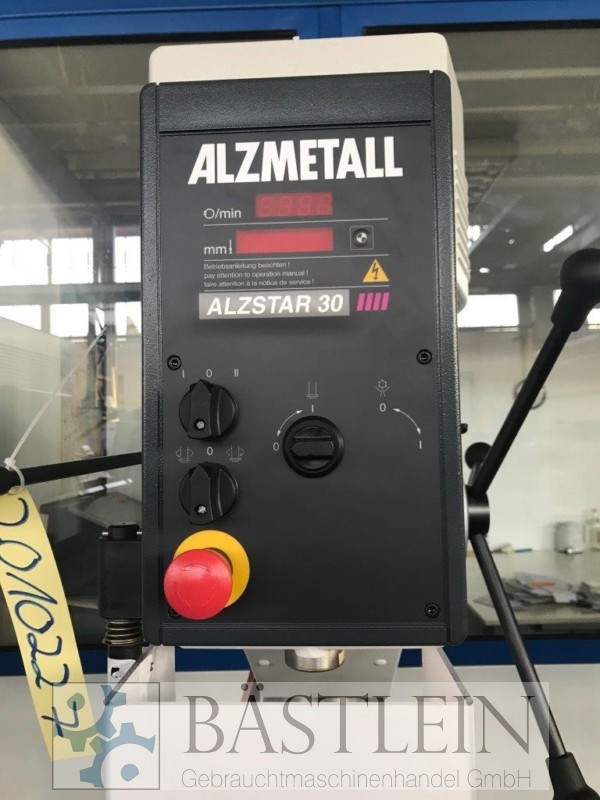

Standard equipment:

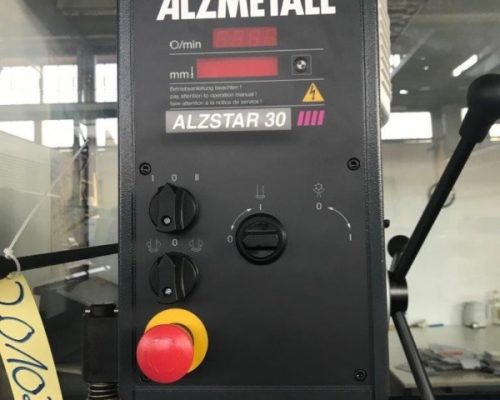

– Mushroom pushbutton (latching) for EMERGENCY STOP
– Reversing switch for right-left rotation
– Motor protection switch
– Speed adjustment stepless
– Speed display digital
– Protection IP 54
– Connector (fully assembled, cable length 2 m)
– Spindle protection with electrical protection

Drilling capacity in St 60	30	mm
threading in St 60	M 16
threading in GG 20	M 20
Short spindle	MK 3
bore stroke	140	mm
throat	293	mm
column diameter	115	mm
Machine table - usable table surface	514x360	mm
T-Slots Amount - Width - Distance	2 x 14 x 224	mm
Distance spindle - machine table min./max.	132/724	mm
feed	Hand
spindle turning speed range	225-4300	UpM
height of the machine	1790	mm
total power requirement	1,0/1,6	kW

2010227
Steuerung: Sonstige
Metal Processing, Boring mills / Machining Centers / Drilling machines, Pillar Drilling Machine

Link to the machine: https://baestlein.com/en/maschine/pillar-drilling-machine-alzmetall-alzstar-30-s-3/
