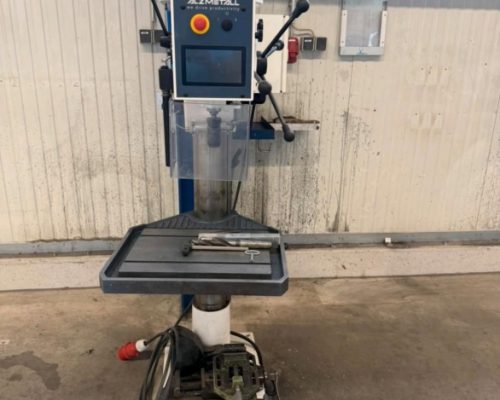

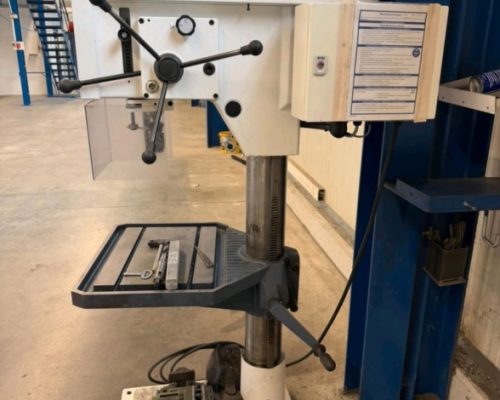

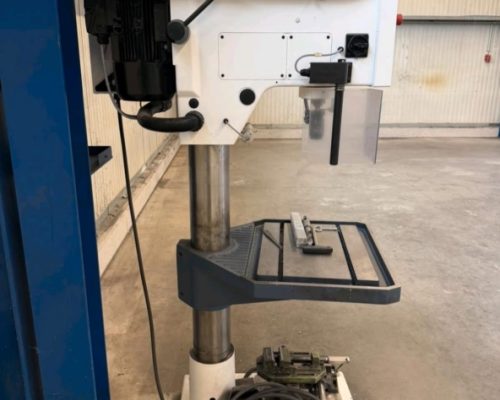

Pillar Drilling Machine, ALZMETALL AX 4 iTRONIC

Standard equipment:
– 7″ TFT LCD display with touch function:
* Manual input of spindle speed set value
* Actual speed display
* Integrated drilling depth display with touch zero point transfer
* Virtual drilling depth scale in the display
* Machine status indicators and warnings on the display
* Service information
* Selectable operating language: DE/EN/FR/ES/IT/NL/RU
– Thread cutting device, for thread cutting with stop, max.
6 threads/min (thread cutting capacity depending on spindle speed), thread depth
adjustable via depth stop and on the TFT LCD display (4 tools)
– Infinitely variable speed adjustment via adjustment lever
– Spindle protection with electrical fuse
– Three separate buttons for clockwise rotation – anticlockwise rotation – stop
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Main switch, lockable
– Clockwise and counter-clockwise rotation via contactor control
– Control voltage 24 V, protection class IP 54
– Paint finish: DD textured paint signal white RAL 9003, PANTONE 4545c, black

Item 20.5
Foot switch in addition to the thread cutting device, for switching the
direction of spindle rotation in the process.
direction of rotation during the process

Item 25.
Coolant unit B, consisting of: separate container (33 l), pump with motor
protection switch, complete armature
motor protection switch, complete fitting

Item 37.5
Technology calculator in the display
The technology calculator guides you through the cutting task Determination of
the
cutting data using the following parameters:
– Manufacturing process
– Tool diameter
– Cutting speed
– Material table
– Transfer function of the spindle speed as set value
