** Special Note – The drill pattern on all side panels is out of tolerance
and offset downward. The clamping dimension for angle brackets or table-to-table connections
is not specified ***

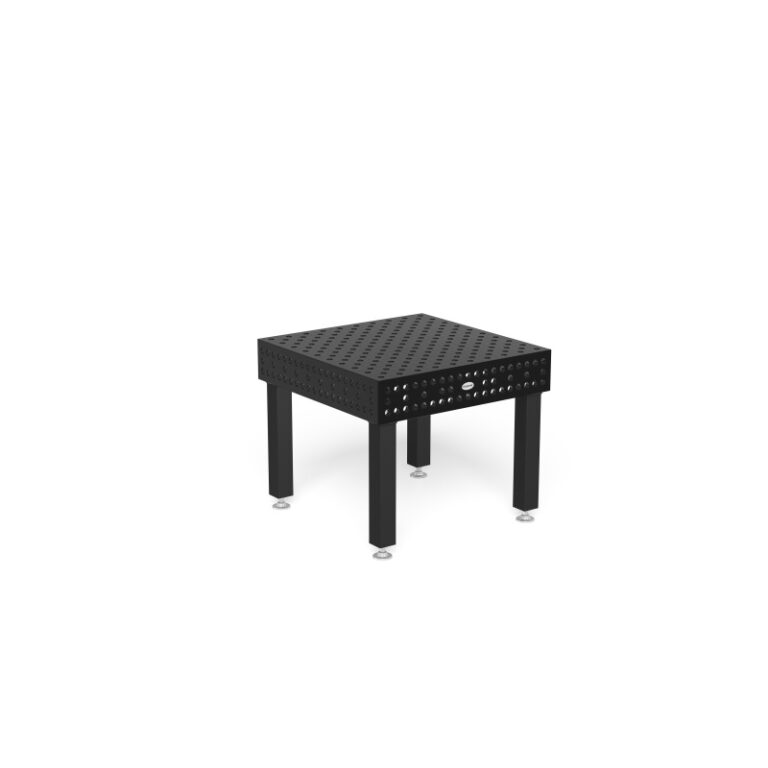

Features:
– 4 legs – Standard configuration 650 mm
– Through-hardened tool steel X8.7 + plasma nitriding
– Material thickness approx. 24.5 27 mm
– Side panels made of high-quality steel S355J2+N + plasma nitriding
– Hole Ø 28 mm
– Holes arranged in a diagonal grid on the surface
– Corners, edges, and holes are rounded
– Side panel height: 200 mm
– Holes in the side panel arranged in a diagonal grid
– Includes scale markings on the surface
– Construction reinforced with ribs
– Grid lines enable precise setups
| table length | 1000 | mm |
| table width | 1000 | mm |
| table height | 200 | mm |
| bore | 28 | mm |
| weight | 400 | kg |
4052176
