Specifications
– High-quality S355J2+N steel + plasma nitriding
– Material thickness approx. 24.527 mm
– Hole diameter 28 mm
– Holes in 100×100 mm grid pattern
– Rounded corners, edges and holes
– Side panel height 200 mm

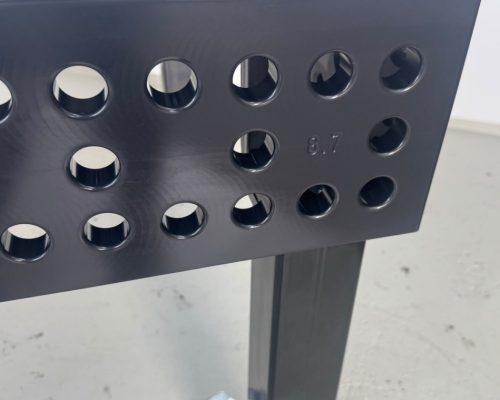

– Hole spacing on side panel: 50 mm
– Includes scale markings on the surface
– Construction reinforced with ribs

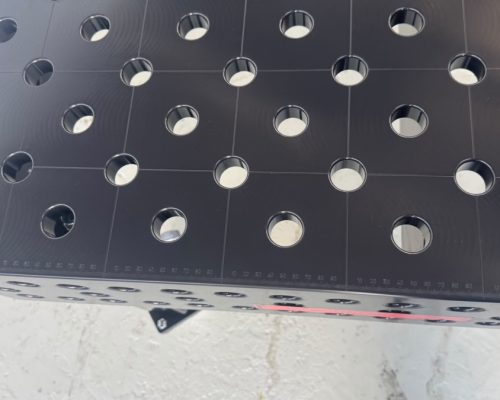

– Grid lines enable precise set-ups
– Special equipment for welding tables is available on request.
| table length | 2000 | mm |
| table width | 1200 | mm |
| table height | 200 | mm |
| bore | 28 | mm |
| weight | 843 | kg |
4052155
Steuerung: konventionell
Metal Processing, Welding machines, Welding Table
