Features/Accessories:
– Space-saving compact design with integrated CNC control
– Bed guides and table slide guides are induction-hardened
and designed as flat guides
– Continuously variable AC main spindle drive
– Constant cutting speed programming
– Cold light lamp integrated into the machine
– Power meter for the main spindle drive (ammeter)

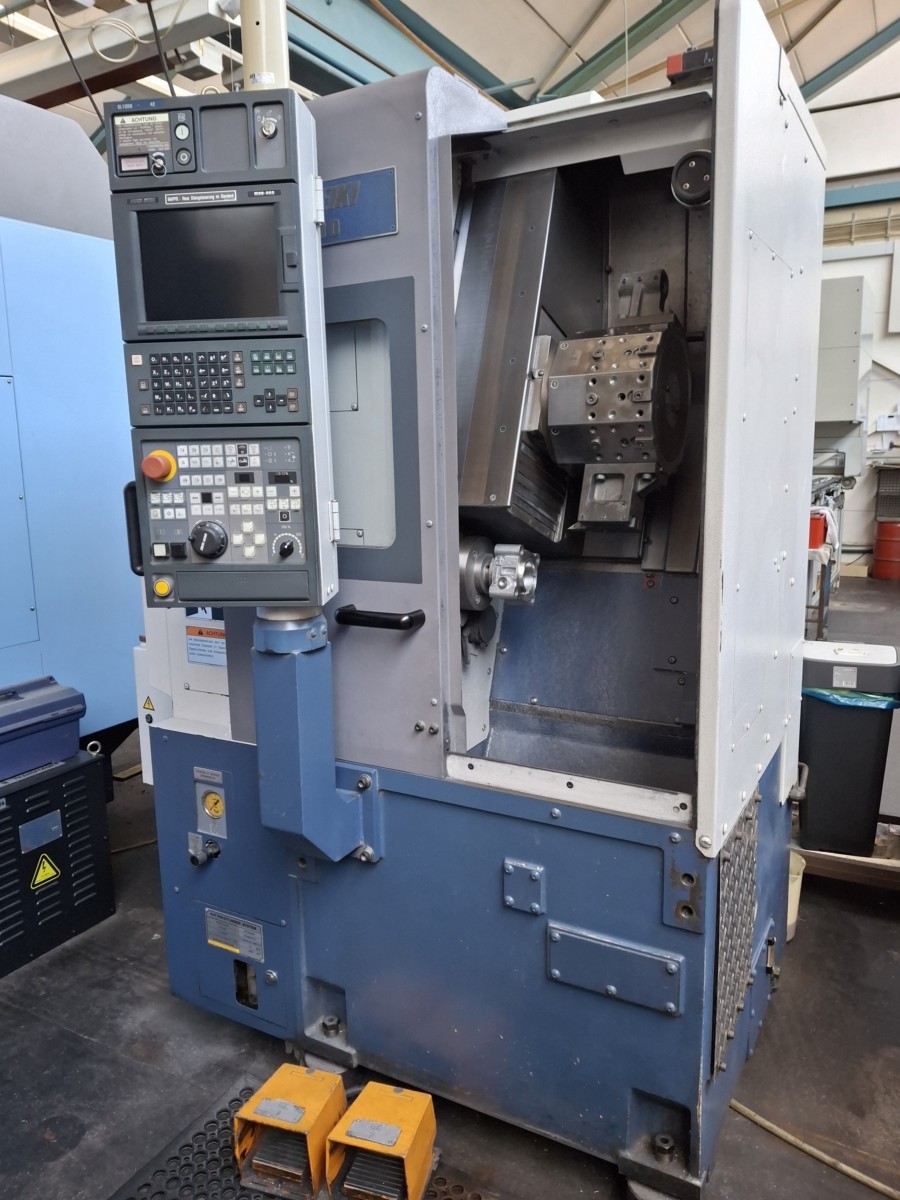

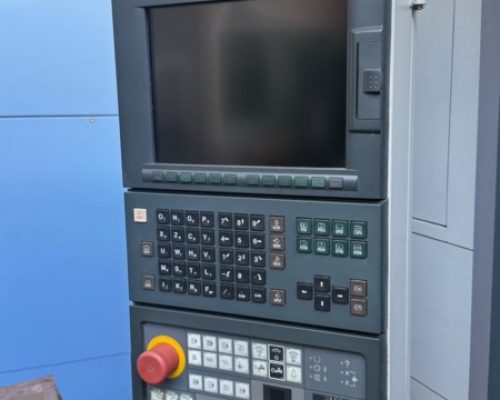

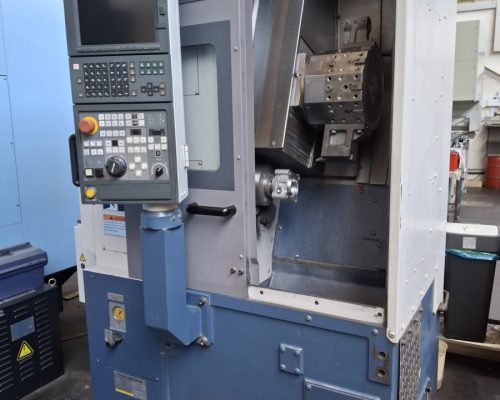

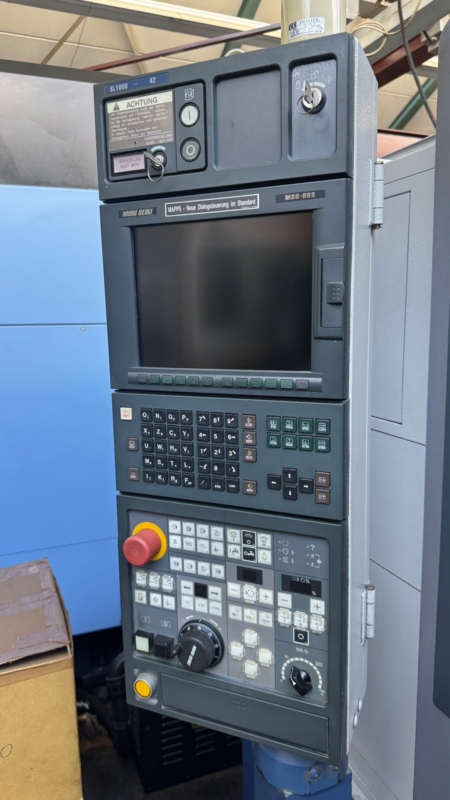

– Control panels for automatic and manual operation as well as CNC programming
are easily accessible and clearly arranged.
The central control panel is mounted on the right side of the machine and can be swiveled
– Highly dynamic three-phase servomotors for the X and Z axes
– Backlash-free, preloaded precision ball screws for the X and Z axes
– Automatic central lubrication with electrical monitoring for the bed and
face slide, as well as the ball screws
– Coolant system complete with tank, pump, lines, and spray nozzle

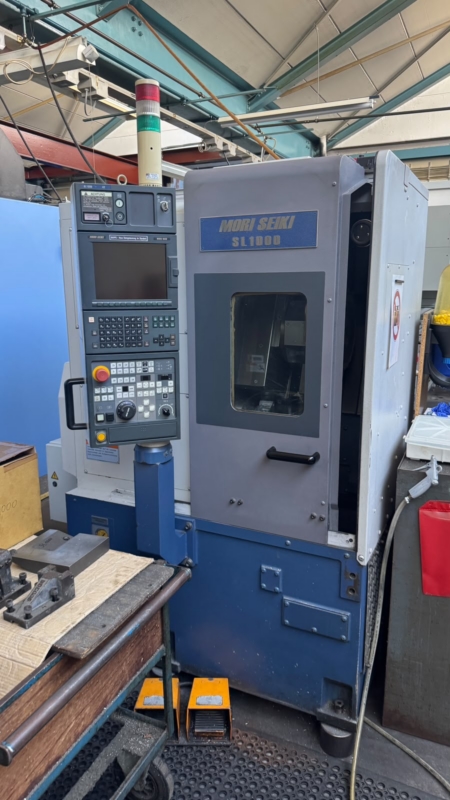

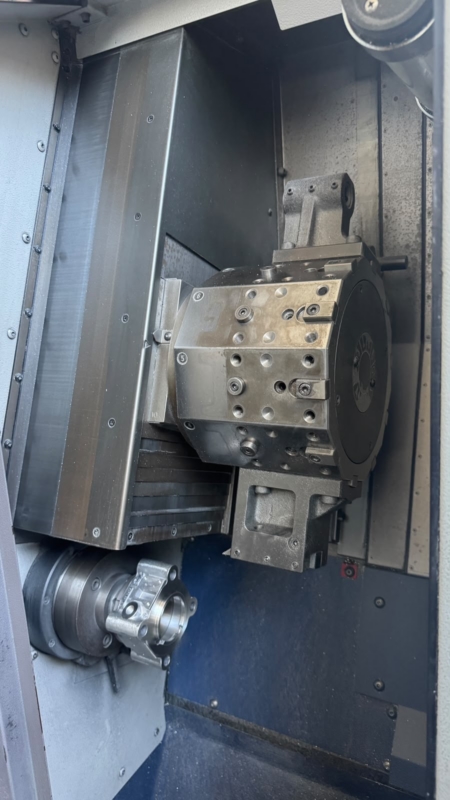

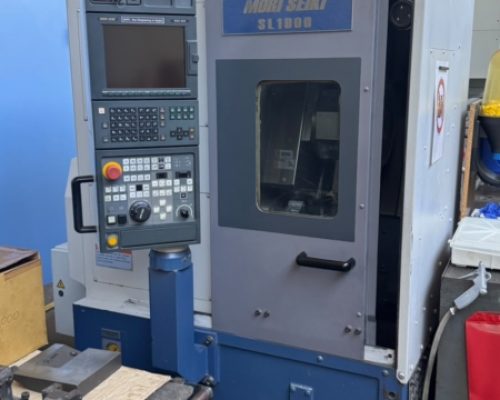

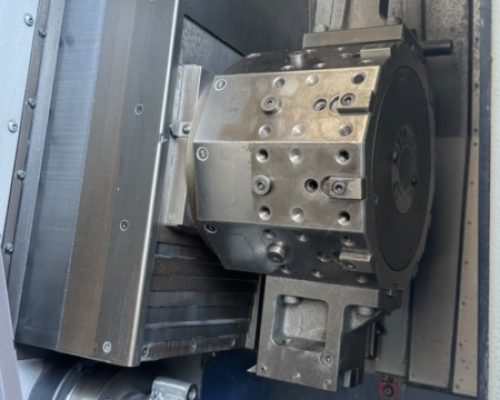

– Electric 10-position turret System MORI SEIKI with automatic
direction control. Direct coolant supply through the turret disc
– Hydraulic power unit, permanently mounted in the machine, with functions for
the power chuck
– Front sliding door with large viewing window
– Prepared for electrical connection to the chip conveyor
– Complete electrical equipment in accordance with VDE 0113
– V.24/RS-232-C data interface
– Control cabinet mounted on the machine

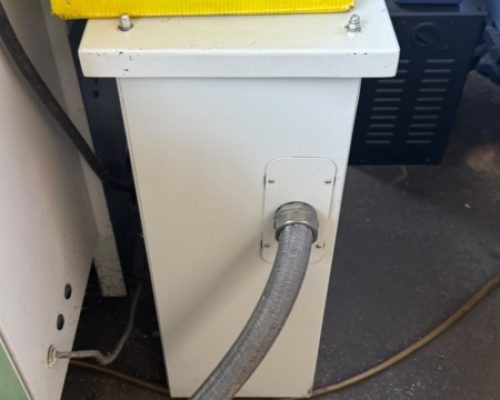

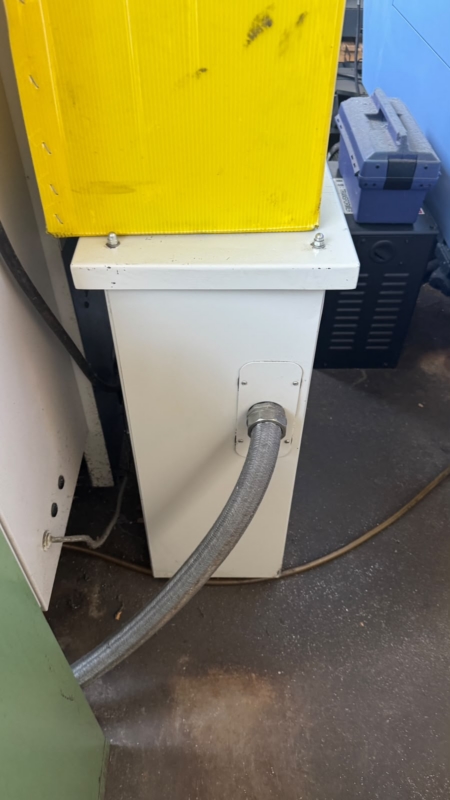

– Freestanding 400V/200V transformer
Operating hours: 27,267 h
| swing diameter | 190 | mm |
| turning length | 180 | mm |
| turning diameter | max. 100 | mm |
| z-axis | 195 | mm |
| x-axis | 125 | mm |
| spindle bore | 43 | mm |
| spindle bearing diameter | 80 | mm |
| diameter of quill | 40 | mm |
| MK 3 | ||
| quill stroke | 45 | mm |
| numbers of turret head positions | 10 | |
| turning speed range | 60 - 6000 | U/min |
| rapid traverse X-axis | 15 | m/min |
| rapid traverse Z-axis | 20 | m/min |
1030309
Steuerung: CNC
